Certus Mini A

Certus Mini A combines temperature-calibrated accelerometers, gyroscopes, and magnetometers coupled in an AI-based fusion algorithm to deliver accurate and reliable orientation data.

Roll & Pitch
0.1 °
Heading (Magnetic)
0.8 °
Update Rate
1000 Hz

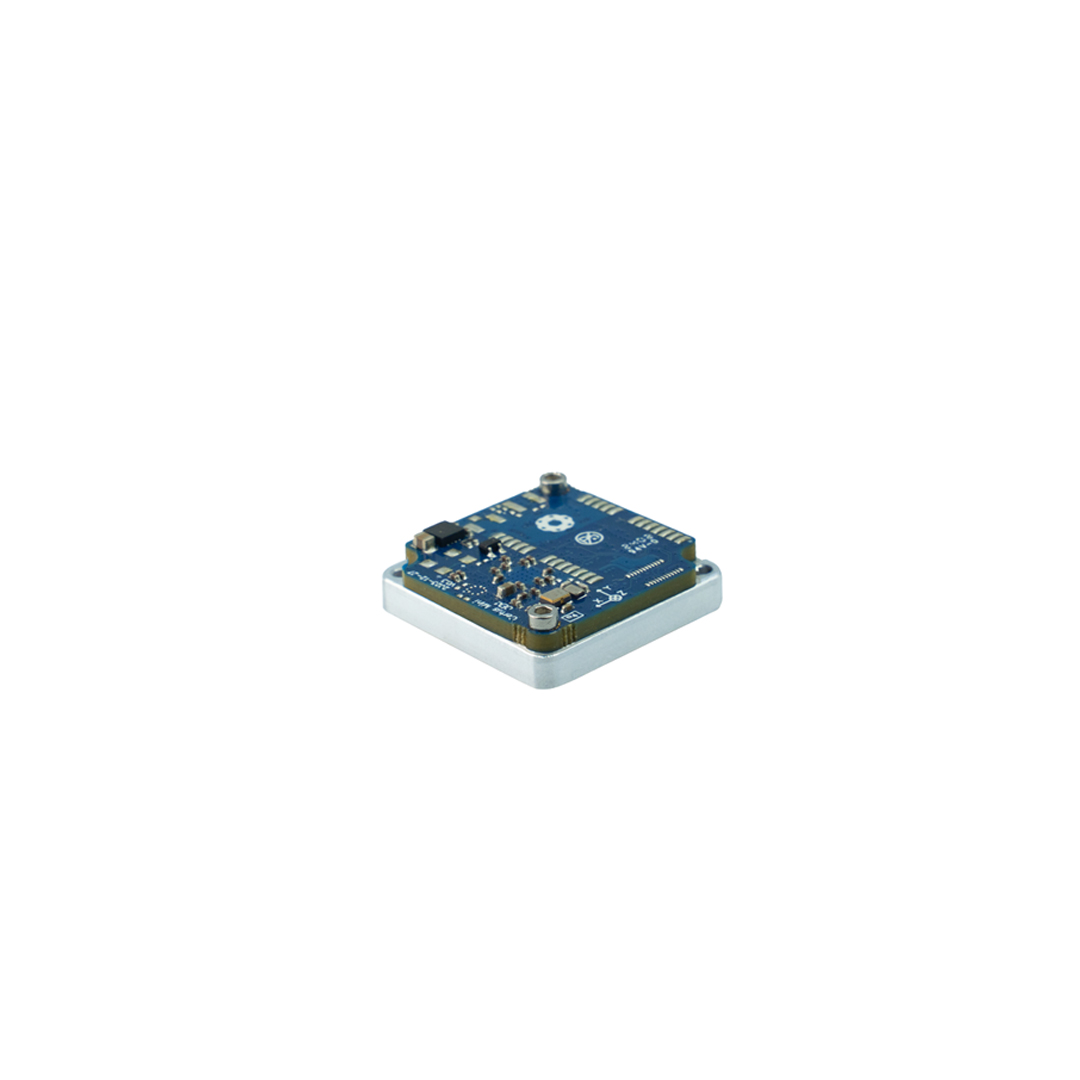

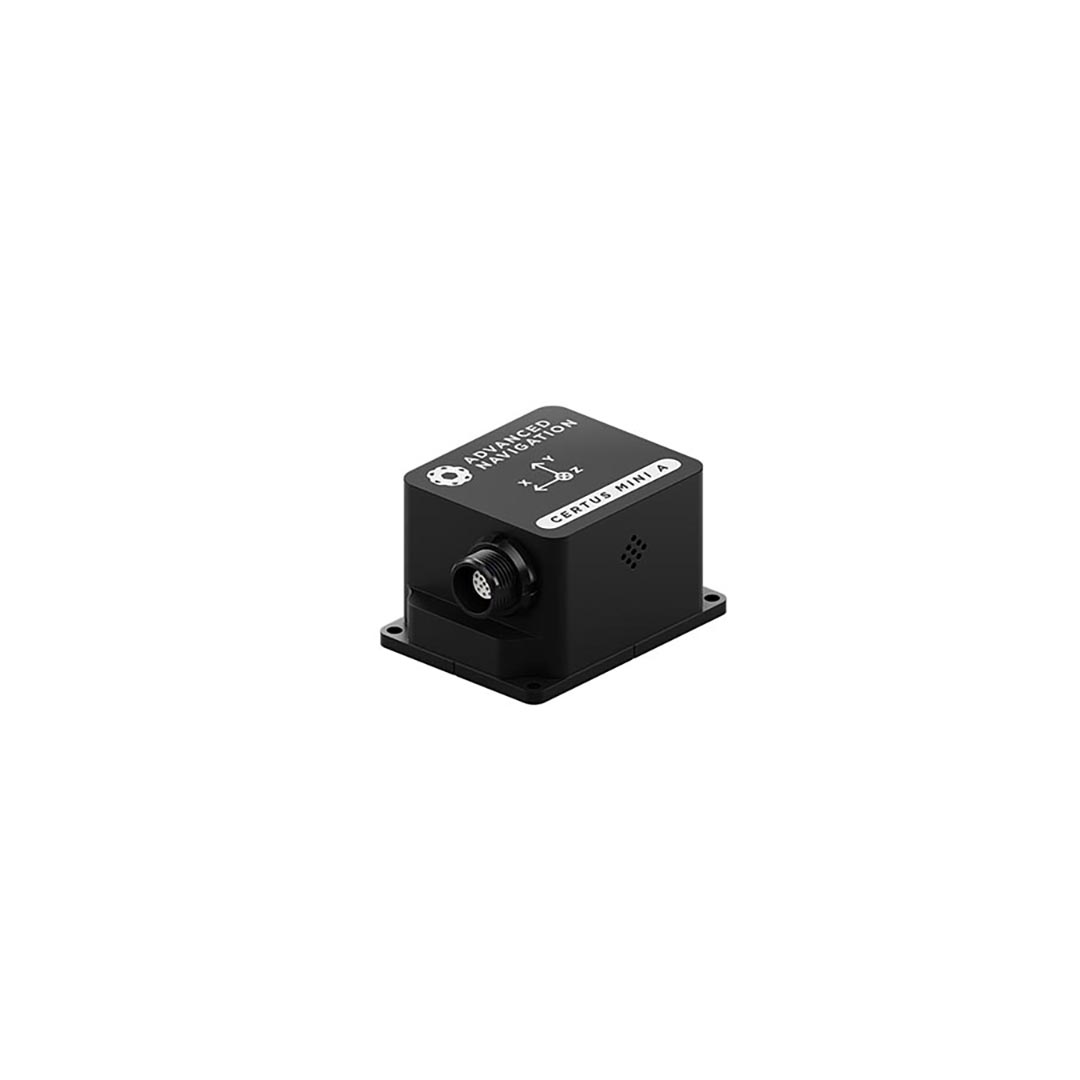

Certus Mini A combines temperature-calibrated accelerometers, gyroscopes, and magnetometers. These are coupled in an AI-based fusion algorithm to deliver accurate and reliable orientation data. The Certus Mini A features low SWaP-C (Size, Weight, Power and Cost) and multiple communication interfaces for easy integration. It is available in both rugged and OEM packages.

ITAR FREE

Features

AI Algorithm
AI Based

AI Navigation Algorithm

The Certus Mini range features Advanced Navigation’s revolutionary AI neural network sensor fusion algorithm.
This provides accuracy levels up to 10 times that of a traditional Kalman filter.
The algorithm was designed for control applications and has a high level of health monitoring and instability prevention to ensure stable and reliable data.
Signal Processing

High-Performance MEMS

The Certus Mini range contains high performance MEMS sensors that are put through Advanced Navigation’s intensive 8 hour temperature calibration process.
This provides the highest accuracy possible from this sensor class and outputs consistent accuracy over the full temperature range from -40°C to 85°C.

Trusted Reliability

Reliability

The Certus Mini range has been designed from the ground up for mission-critical control applications where reliability is essential.
Built using a safety-oriented real-time operating system, all software is designed and tested to high safety standards with fault-tolerance in mind.
The Certus Mini range is designed, manufactured and tested to military standards.

Acceleration Compensation

Linear Acceleration Compensation

Certus Mini uses an innovative algorithm to compensate for linear accelerations.
This allows Certus Mini to maintain accurate roll and pitch through short term linear accelerations that typically cause significant errors in competitors systems.
For long term linear accelerations Certus Mini supports the addition of an external GNSS receiver for full acceleration compensation.

Protocols Interfaces

Extensive Interoperability

Certus Mini seamlessly communicates with a wide range of industry standard protocols including NMEA 0183 and CANOpen making it easy to integrate into existing systems.
Certus Mini effortlessly interfaces with ROS 1, ROS 2, and Ardupilot, streamlining your development processes for maximum efficiency and effectiveness.

Applications

Specifications

Orientation

Roll & Pitch Accuracy
0.1 °
Orientation Range
Unlimited
Output Data Rate
Up to 1000 Hz
Heading Accuracy (Magnetic Only)
0.8 °
Hot Start Filter Initialisation
1 s

Sensors

Accelerometers

Range
±2 g • ±4 g • ±16 g
Initial Bias
< 5 mg
Scale Factor Stability
< 0.06 %
Cross-axis Alignment Error
< 0.05 °
Random Walk
58 mm/sec/√hr VRW
Bias Instability
< 20 ug
Initial Scaling Error
< 0.06 %
Non-linearity
< 0.05 %
Noise Density
100 ug/√Hz
Bandwidth
400 Hz

Gyroscopes

Range
± 250 °/s • ± 500 °/s • ± 2000 °/s
Initial Bias
< 0.2°/s
Scale Factor Stability
< 0.05 %
Cross-axis Alignment Error
< 0.05 °
Random Walk
0.24 °/√h ARW
Initial Scaling Error
< 0.04 %
Non-linearity
< 0.05 %
Noise Density
0.004 °/s/√Hz
Bandwidth
400 Hz

Magnetometers

Range
± 8 G
Scale Factor Stability
< 0.09 %
Cross-axis Alignment Error
< 0.05 °
Bandwidth
110 Hz
Initial Scaling Error
< 0.07 %
Non-linearity
< 0.08 %
Noise Density
210 uG/√Hz

Communication

Interface (Rugged)
Primary RS232/RS422 • Auxiliary RS232 • CAN • 2x GPIO
Protocols and Functions
Digital Input / Output • Frequency Input • AN Packet Protocol (ANPP) • NMEA • GNSS • CANOpen
Interface (OEM)
Primary & Auxiliary UART • CAN • 2x GPIO

Hardware

Operating Voltage (Rugged)
5 to 36 V
Power Consumption (Typical)
0.7 W
Operating Temperature (MIL-STD-810H 502.7)
-40 °C to 85 °C
Shock Limit (IEC 60068-2-27)
150 g, 6 ms
Vibration Limit (MIL-STD-810H 514.8)
7.7 g RMS
Dimensions (OEM)
25 x 25 x 8 mm
Weight (OEM)
7 grams
Operating Voltage (OEM)
5 V
Hot Start Battery
Yes
Ingress Protection (IEC 60529) (Rugged)
IP67
Shock Limit (MIL-STD-810H 516.8)
40 g, 11 ms
Dimensions (Rugged)
30 x 41 x 24 mm
Weight (Rugged)
38 grams

Documentation

Datasheet
24 September 2024 - V1.0
Rugged Reference Manual (Online)
Latest

Software

Certus Mini Manager

The Manager is the software provided for testing, configuration and logging with Certus Mini. Java 11 is required to run the application. Adoptium JRE 11 is the recommended Java installer. Please see the reference manual for more information.

20 Aug 2024 – V7.4

Certus Mini A SDK

The Certus Mini A SDK provides example source code for interfacing with Certus Mini A through the AN Packet Protocol. The languages provided are C/C++, Java, and .Net C#.

28 Aug 2024 – V7.3
