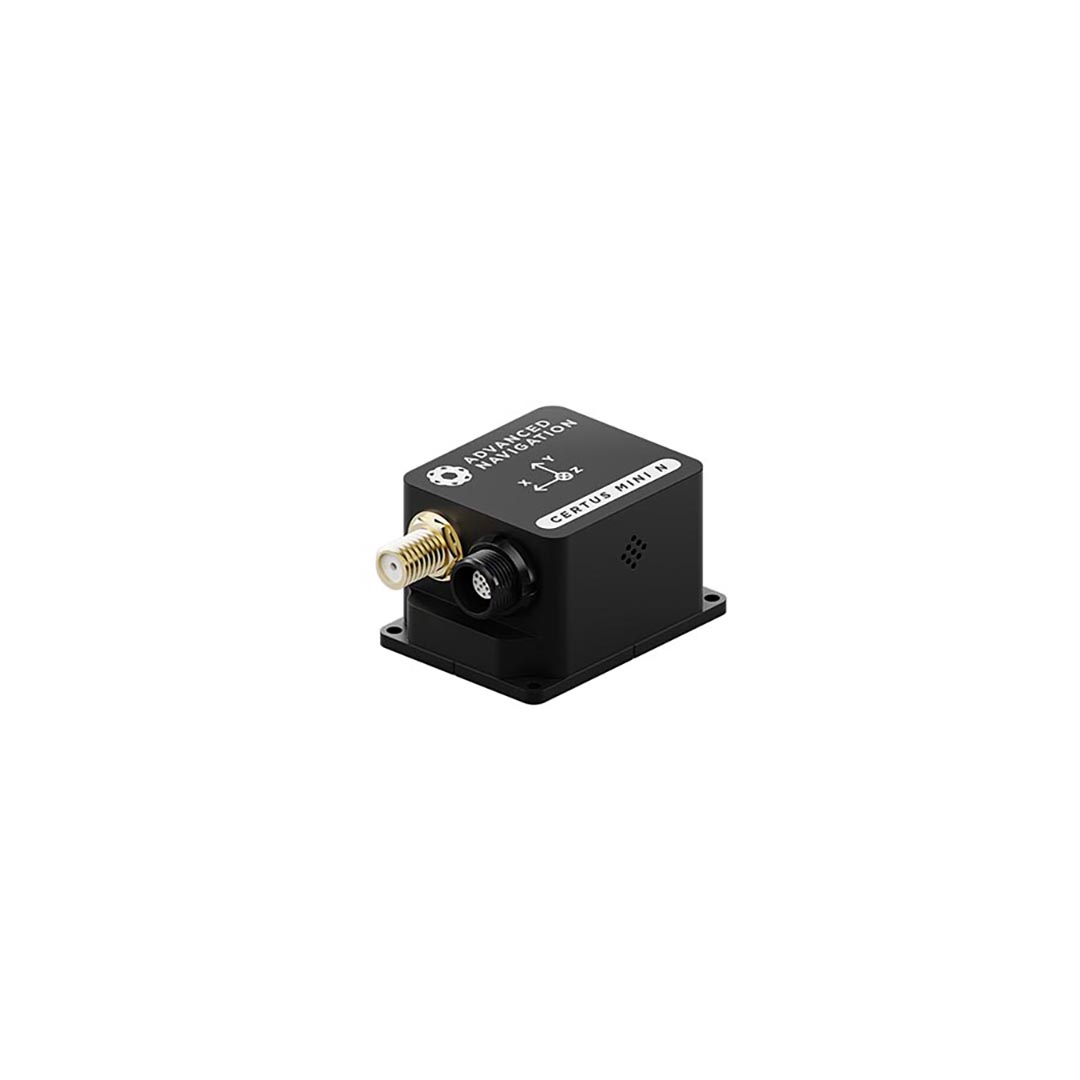

Certus Mini N

Certus Mini N is a miniature GNSS-aided INS that provides accurate position, velocity, acceleration, and orientation under the most demanding conditions.

Roll & Pitch

0.1 °


Heading (Velocity)

0.2 °


RTK Positioning

10 mm


Update Rate

1000 Hz

Certus Mini combines temperature-calibrated accelerometers, gyroscopes, pressure sensor and magnetometers with an advanced single antenna GNSS receiver. These are coupled in an AI-based fusion algorithm to deliver accurate and reliable navigation data. The Certus Mini features low SWaP-C (Size, Weight, Power and Cost) and multiple communication interfaces for easy integration. It is available in both rugged and OEM packages and includes license-free L1/L5 multi-constellation GNSS.

Certus Mini D is also available with a dual antenna GNSS receiver.

Horizontal Position Accuracy
1.5 m
Horizontal Position Accuracy (with SBAS)
0.7 m
Horizontal Position Accuracy (with RTK or Kinematica PPK)
0.01 m
Velocity Accuracy
0.05 m/s
Heading Accuracy (Velocity)
0.2 °
Roll & Pitch Accuracy (Kinematica post processing)
0.03 °
Heave Accuracy
5 % or 0.05 m (whichever is greater)
Hot Start Filter Initialization
1 s
Vertical Position Accuracy
2.0 m
Vertical Position Accuracy (with SBAS)
0.8 m
Vertical Position Accuracy (with RTK or Kinematica PPK)
0.015 m
Roll & Pitch Accuracy
0.1 °
Heading Accuracy (Magnetic Only)
0.8 °
Heading Accuracy (Kinematica post processing)
0.06 °
Orientation Range
Unlimited
Output Data Rate
Up to 1000 Hz

Model
Aries CM
Supported SBAS Systems
WAAS • EGNOS • MSAS • GAGAN • QZSS
Hot Start First Fix
3 s
Supported Navigation Systems
GPS L1C/A, L5 • GLONASS L1OF • Galileo E1B/C, E5a • BeiDou B1I, B2a • NavIC L5 SPS
Update Rate
Up to 25 Hz
Timing Accuracy
30 ns RMS

Operating Voltage (Rugged)
5 to 36 V
Power Consumption (Typical)
0.7 W
Operating Temperature (MIL-STD-810H 502.7)
-40 °C to 85 °C
Shock Limit (IEC 60068-2-27)
150 g, 6 ms
Vibration Limit (MIL-STD-810H 514.8)
7.7 g RMS

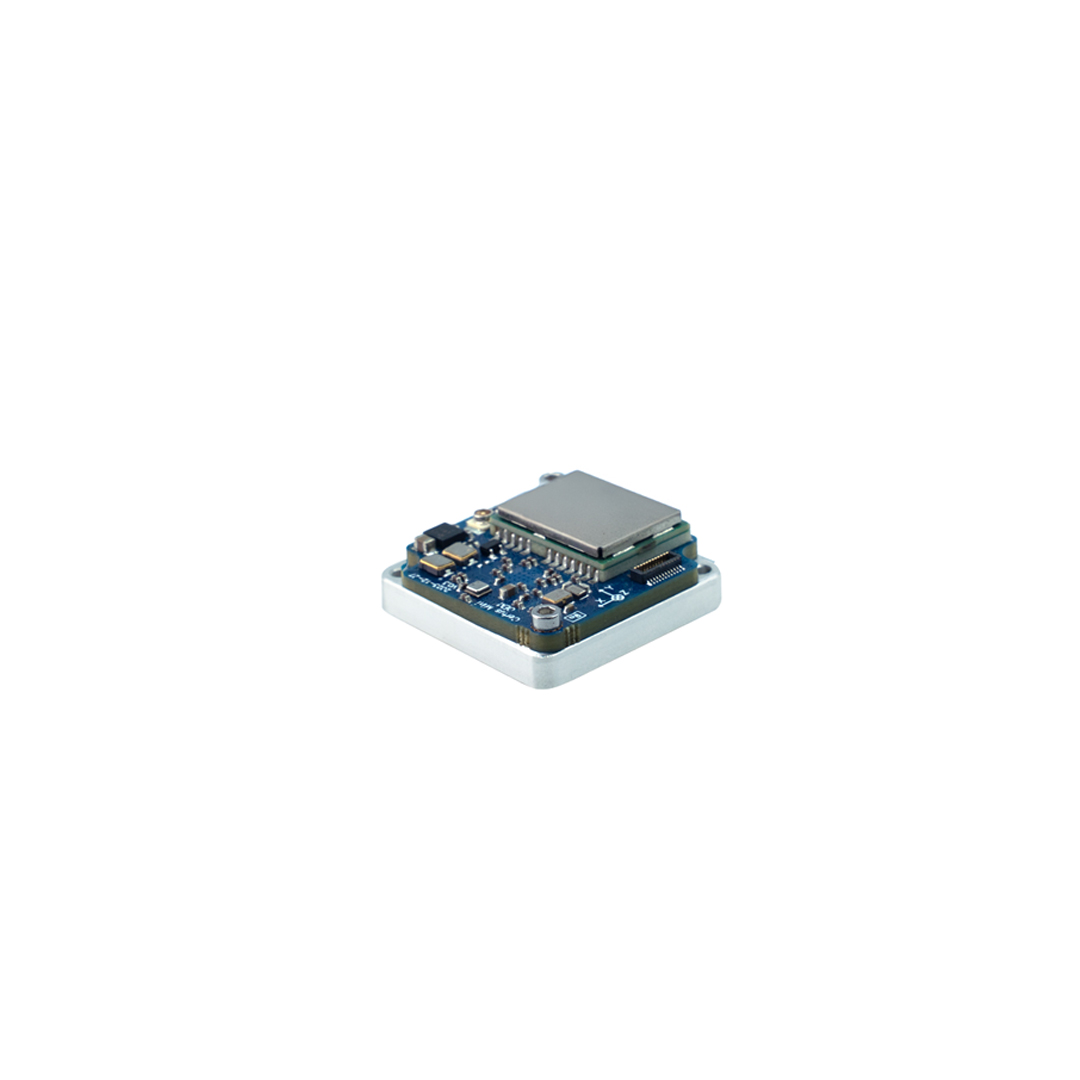

Dimensions (OEM)
25 x 25 x 10 mm
Weight (OEM)
8 grams
Operating Voltage (OEM)
5 V
Hot Start Battery
Yes
Ingress Protection (IEC 60529) (Rugged)
IP67
Shock Limit (MIL-STD-810H 516.8)
40 g, 11 ms
Dimensions (Rugged)
30 x 41 x 24 mm
Weight (Rugged)
43 grams

Interface (Rugged)
Primary RS232/RS422 • Auxiliary RS232 • CAN • 2x GPIO
Protocols and Functions
Digital Input / Output • Frequency Input • AN Packet Protocol (ANPP) • NMEA • GNSS • CANOpen • 1PPS • Odometer / Air Data • DVL / USBL • RTCM
Interface (OEM)
Primary & Auxiliary UART • CAN • 2x GPIO

Range (dynamic)
±2 g • ±4 g • ±16 g
Initial Bias
< 5 mg
Scale Factor Stability
< 0.06 %
Cross-axis Alignment Error
< 0.05 °
Random Walk
58 mm/sec/√hr VRW
Bias Instability
< 20 ug
Initial Scaling Error
< 0.06 %
Non-linearity
< 0.05 %
Noise Density
100 ug/√Hz
Bandwidth
400 Hz
Range (dynamic)
± 250 °/s • ± 500 °/s • ± 2000 °/s
Initial Bias
< 0.2°/s
Scale Factor Stability
< 0.05 %
Cross-axis Alignment Error
< 0.05 °
Random Walk
0.24 °/√h ARW
Initial Scaling Error
< 0.04 %
Non-linearity
< 0.05 %
Noise Density
0.004 °/s/√Hz
Bandwidth
400 Hz
Range (dynamic)
± 8 G
Scale Factor Stability
< 0.09 %
Cross-axis Alignment Error
< 0.05 °
Bandwidth
110 Hz
Initial Scaling Error
< 0.07 %
Non-linearity
< 0.08 %
Noise Density
210 uG/√Hz
Range (dynamic)
30 to 125 kPa
Initial Bias
100 Pa
Bias Instability
10 Pa
Noise Density
0.56 Pa/√Hz

Downloads

Datasheet

Version 1.1

24 Sep 2024

Reference Manual

Version 1.0

7 Nov 2024

Rugged Reference Manual

Online Version

3D Model

Version 1.0

19 Nov 2024

Certus Mini Manager

Version 7.5

25 Nov 2024

The Manager is the software provided for testing, configuration and logging with Certus Mini. Java 11 is required to run the applicationAdoptium JRE 11 is the recommended Java installer. Please see the reference manual for more information.

Certus Mini N Firmware

Version 1.01

23 Oct 2024

Firmware for Certus Mini N hardware. This can be loaded onto the Certus Mini N using the Certus Mini Manager software. The change log can be found in the Certus Mini reference manual.

Certus Mini N SDK

Version 7.3

28 Aug 2024

The Certus Mini N SDK provides example source code for interfacing with Certus Mini N through the AN Packet Protocol. The languages provided are C/C++, Java, and .Net C#.
