Certus

Name: Certus
Brand: Advanced Navigation
Rating: 5 (5 reviews)

Certus is a dual antenna GNSS/INS that provides accurate position, velocity, acceleration, and orientation under the most demanding conditions.

Roll & Pitch

0.1 °

Heading (GNSS)

0.1 °

Bias Instability

3 °/hr

Position Accuracy

10 mm

Get a quote

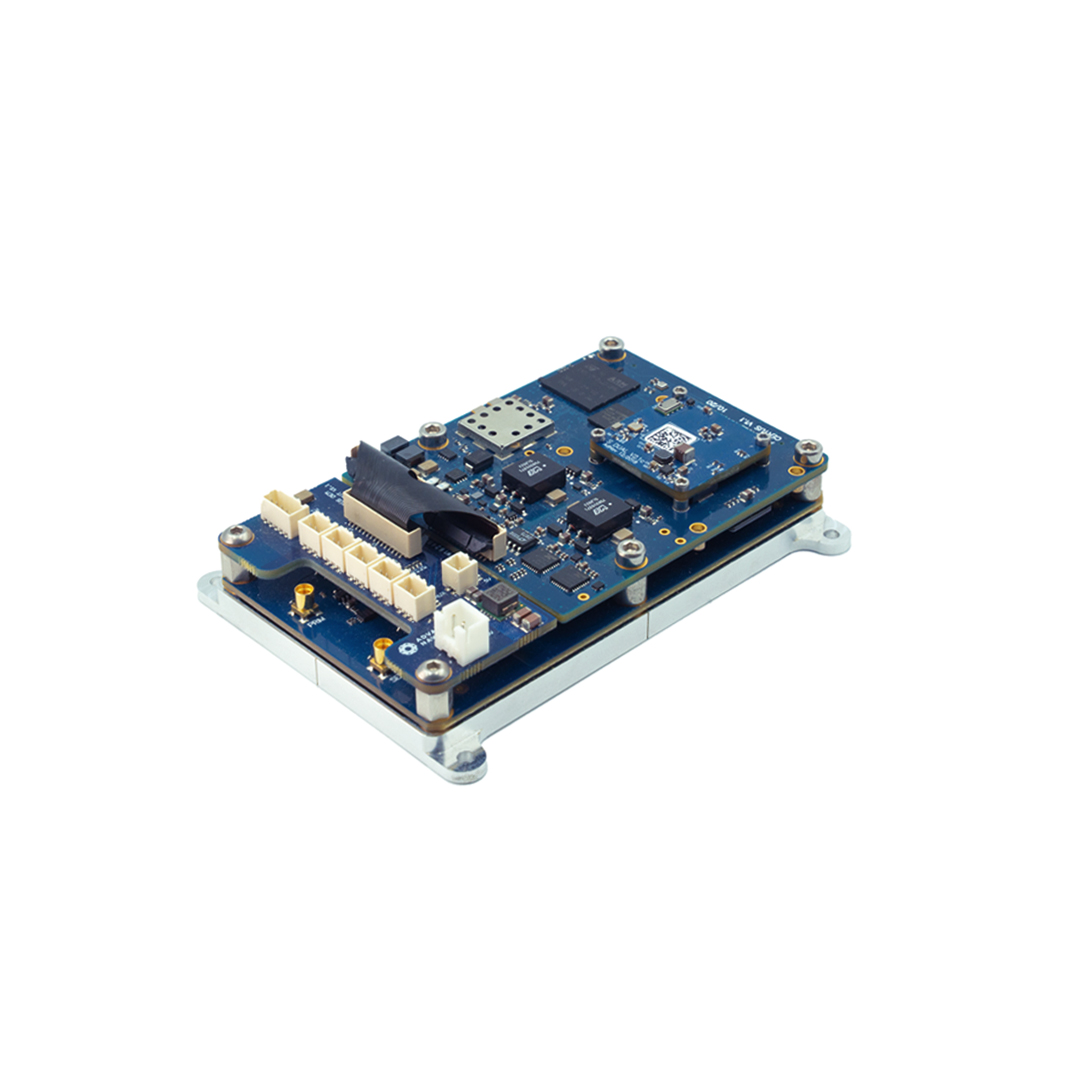

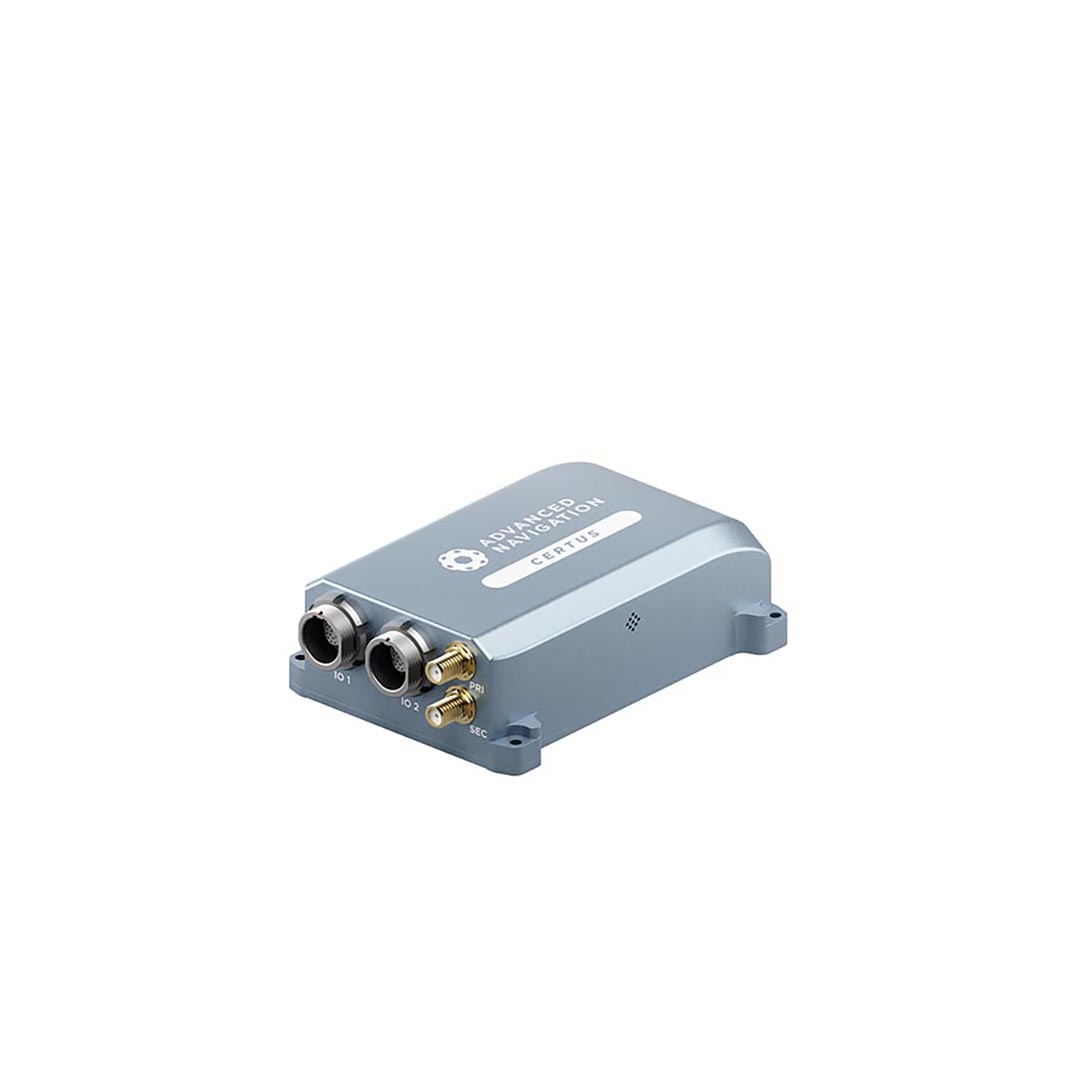

Certus combines temperature calibrated accelerometers, gyroscopes, magnetometers, and a pressure sensor with a dual antenna GNSS receiver. These are coupled in an AI-based fusion algorithm to deliver accurate and reliable navigation data. It features low SWaP-C (Size, Weight, Power, and Cost), internal data logging, and multiple communication interfaces for easy integration. Certus is available in both OEM and rugged packages and comes standard with license-free 1 cm RTK position accuracy. Certus Dual Antenna GNSS/INS is compatible with our post-processing kinematic (PPK) software Kinematica.

Features

Applications

Specifications

Documentation

Software

Features

AI Navigation Algorithm

Certus features Advanced Navigation’s revolutionary AI neural network sensor fusion algorithm. This provides an accuracy of up to 10 times that of a traditional Kalman filter. It was designed for control applications and has a high level of health monitoring and instability prevention to ensure stable and reliable data.

High-Performance MEMS

Certus contains high performance MEMS sensors that are put through Advanced Navigation's intensive 8 hour temperature calibration process. This provides the highest accuracy possible from this sensor class and outputs consistent accuracy over the full temperature range from -40°C to 85°C.

Dual Antenna RTK GNSS

Certus contains a dual frequency RTK GNSS receiver that provides up to 1 cm accuracy positioning and supports all of the current and future satellite navigation systems, including GPS, GLONASS, GALILEO, BeiDou and QZSS. Dual antenna heading provides high accuracy heading that is not impacted by magnetic interference and has no motion requirements.

Time Synchronisation

Certus contains a GNSS disciplined oscillator that can act as the primary time source within a distributed time system, enabling access to ultra-accurate system time using PTP or NTP network time sync. Certus also has a high-accuracy 1PPS and frequency output.

Multi-Protocol Support

Certus features multiple interfaces including Ethernet, CAN, RS232, RS422 and GPIOs. Certus supports all the industry standard protocols including NMEA 0183, NMEA 2000, TSS, PASHR, Simrad as well as a wide variety of proprietary protocols. It feaures a rich web UI and 256GB of internal logging.

Applications

Marine Surveying

Land Surveying

UGVs

Helicopters

Antenna Targeting

Motorsport

Robotics

Specifications

Navigation

Horizontal Position Accuracy

1.2 m

Vertical Position Accuracy

2.0 m

Horizontal Position Accuracy (with SBAS)

0.5 m

Vertical Position Accuracy (with SBAS)

0.8 m

Horizontal Position Accuracy (with RTK or Kinematica PPK)

0.01 m

Vertical Position Accuracy (with RTK or Kinematica PPK)

0.015 m

Velocity Accuracy

0.05 m/s

Roll & Pitch Accuracy

0.1 °

Roll & Pitch Accuracy (Kinematica Post Processing)

0.03 °

Heading Accuracy (Kinematica Post Processing)

0.06 °

Slip Accuracy

0.1 °

Heave Accuracy

5 % or 0.05 m

Range

Unlimited

Hot Start Time

500 ms

Output Data Rate

Up to 1000 Hz

Internal Filter Rate

1000 Hz

Sensors

Accelerometers

Range

±2 g • ±4 g • ±16 g

Bias Instability

20 ug

Initial Bias

< 5 mg

Initial Scaling Error

< 0.06 %

Scale Factor Stability

< 0.06 %

Non-linearity

< 0.05 %

Cross-axis Alignment Error

< 0.05 °

Noise Density

100 ug/√Hz

Bandwidth

400 Hz

Gyroscopes

Range

±250 °/s • ±500 °/s • ±2000 °/s

Bias Instability

3 °/hr

Initial Bias

< 0.2 °/s

Initial Scaling Error

< 0.04 %

Scale Factor Stability

< 0.05 %

Non-linearity

< 0.05 %

Cross-axis Alignment Error

< 0.05 °

Noise Density

0.004 °/s/√Hz

Bandwidth

400 Hz

Magnetometers

Range

±2 G • ±4 G • ±8 G

Initial Scaling Error

< 0.07 %

Scale Factor Stability

< 0.09 %

Non-linearity

< 0.08 %

Cross-axis Alignment Error

< 0.05 °

Noise Density

210 uG/√Hz

Bandwidth

110 Hz

Pressure

Range

10 to 120 KPa

Bias Instability

10 Pa

Initial Bias

< 100 Pa

Noise Density

0.56 Pa/√Hz

Bandwidth

50 Hz

GNSS

Model

Advanced Navigation Aries

Supported Navigation Systems

GPS L1, L2 • GLONASS L1, L2 • GALILEO E1, E5b • BeiDou B1, B2

Supported SBAS Systems

WAAS • EGNOS • MSAS • GAGAN • QZSS

Update Rate

Up to 20 Hz

Hot Start First Fix

3 s

Cold Start First Fix

30 s

Horizontal Position Accuracy

1.2 m

Horizontal Position Accuracy (with SBAS)

0.5 m

Horizontal Position Accuracy (with RTK)

0.01 m

Velocity Accuracy

0.05 m/s

Timing Accuracy

20 ns

Acceleration Limit

4 g

Communication

Interface

Ethernet • RS232/RS422 • CAN

Speed

100Mbit • 4800 to 4M baud serial

Protocol

AN Packet Protocol • NMEA0183 • NMEA2000

Peripheral Interface

2x GPIO • 1x Auxiliary RS232

GPIO Level

5 V or RS232

GPIO Functions

1PPS Input/output • Odometer • Stationary • Air Data Input • NMEA input/output • Novatel GNSS input • Trimble GNSS input • AN Packet Protocol • CAN/CANopen • Event Trigger

Hardware

Operating Voltage

9 to 36 V

Input Protection

-40 to 100 V

Power Consumption (Typical)

2.64 W

Hot Start Battery Capacity

> 48 hrs

Hot Start Battery Charge Time

30 mins

Hot Start Battery Endurance

> 10 years

Operating Temperature

-40 °C to 85 °C

International Protection Marking

IP67

Environmental Protection

MIL-STD-810G

MTBF

140,000 hrs

Shock Limit

2000 g

Dimensions

78 x 115 x 34 mm

Weight

255 grams

Documentation

Datasheet

28 Sep 2021 - V3.1

Rugged Reference Manual (Online)

Latest

Rugged Reference Manual (PDF)

20 Mar 2024 - V2.3

Rugged 3D Model

19 Mar 2020 - V1.0

OEM Reference Manual (Online)

Latest

OEM Reference Manual (PDF)

20 Mar 2024 - V1.9

OEM 3D Model

28 Jan 2021 - V1.1

Certus Sensors Allan Variance Report

Apr 2024 - V1.1

Certus Car Dead Reckoning Report

Dec 2023 - V1.0

Software

Certus Manager

Certus Manager is used for testing, configuration, firmware management and logging with Certus. Java 11 is required to run Certus Manager v7.0 and later. Adoptium JRE 11 is the recommended Java installer. Please see the reference manual for more information.

11 Apr 2024 – v7.3

Certus Firmware

Firmware for all Certus hardware versions. This can be loaded onto Certus using the web interface or the Certus Manager software. The change log can be found in the Certus reference manual.

20 Mar 2024 – V1.81

Certus SDK

The Certus SDK provides example source code for interfacing with Certus through the AN Packet Protocol. The languages provided are C/C++, Java, and .Net C#.

28 Aug 2024 – V7.3
