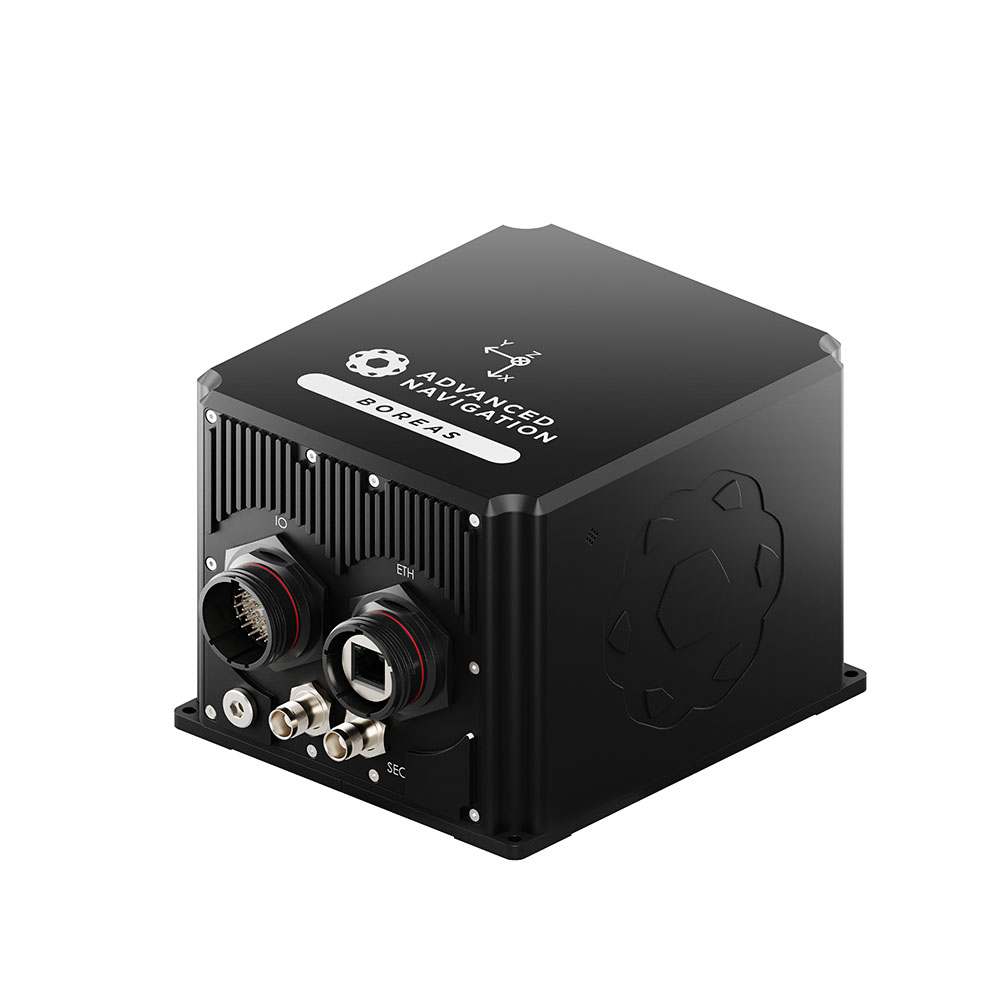

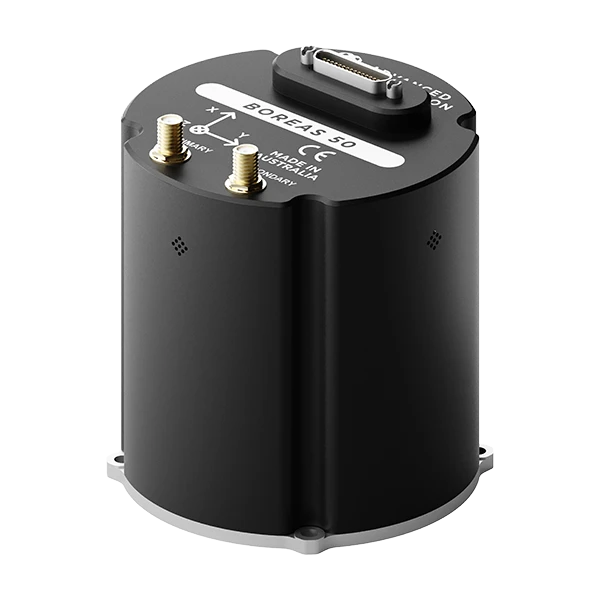

Boreas

Name: BOREAS
Brand: Advanced Navigation
Rating: 5 (5 reviews)

Using world-first Digital FOG technology, Boreas D90 is an ultra-high accuracy INS offering 40% lower SWaP-C (Size, Weight, Power, and Cost).

Learn more about DFOG.

Roll & Pitch

0.005 °

Heading (Gyrocompass)

0.01 ° seclat

Bias Instability

0.001 °/hr

Position Accuracy

10 mm

Using world-first Digital FOG technology, Boreas D70 offers a complete GNSS/INS with automatic Gyrocompassing and competitive SWaP-C (Size, Weight, Power, and Cost).

Learn more about DFOG.

Roll & Pitch

0.01 °

Heading (Gyrocompass)

0.1 ° seclat

Bias Instability

0.01 °/hr

Position Accuracy

10 mm

Get a quote

Ask a question

Boreas combines cutting-edge closed-loop Digital Fibre Optic Gyroscope (DFOG) and closed-loop accelerometer technologies with a dual antenna RTK GNSS receiver.

These are coupled in a sophisticated fusion algorithm to deliver accurate and reliable navigation. The system features ultra-fast gyro compassing, acquiring and maintaining an accurate heading under all conditions with no reliance on GNSS.

Boreas is compatible with our post-processing kinematic (PPK) software Kinematica.

Features

Applications

Specifications

Documentation

Software

Features

Boreas | Digital Fibre Optic Gyroscope (DFOG)

Revolutionary DFOG Technology

Boreas takes Fibre Optic Gyroscope (FOG) technology into the next generation with new, patent-pending Digital FOG (DFOG) technology, developed over 25 years with 2 research institutions. This revolutionary DFOG technology combines a specially designed closed-loop optical coil with advanced spread spectrum digital modulation techniques that have never been used in a FOG before. The resulting DFOG offers dramatically improved accuracy, stability, and reliability with significantly reduced size, weight, power, and cost.

Ultra-Fast North Seeking

The superior accuracy of the DFOG technology enables Boreas D90 to rapidly determine its heading, without the need for GNSS or magnetometers. By sensing the Earth's rotation, Advanced Navigation's revolutionary north-seeking algorithm allows Boreas D90 to acquire an accurate heading within minutes of start up. This can be achieved in both static and dynamic conditions, as well as at high latitudes.

Reliability

Boreas D90 has been designed from the ground up for reliability. Both the hardware and software are designed and tested to safety standards. The precision aluminium enclosure is waterproof and dustproof to the IP67 standard. The system is resilient to shock and vibration, allowing it to be used in the most extreme conditions. The hardware is designed and tested to MIL standards. The GNSS contains RAIM, which excludes malfunctioning or tampered satellite signals.

Industry Leading SWaP-C

Based on ground-breaking DFOG technology, Boreas D90 offers a 40% reduction in size, weight, power and cost, when compared to competing systems of similar performance.

Multi Protocol Support

Boreas D90 features multiple interfaces including Ethernet, CAN, RS232, RS422 and GPIOs. Boreas D90 supports all the industry standard protocols including NMEA, CANopen, NTP, PTP, as well as a wide variety of proprietary protocols. A rich, responsive embedded web interface provides full access to all of the device's internal functions and data. Internal storage allows for up to 1 year of data logging.

Applications

Marine Surveying

Land Surveying

Antenna Targeting

ROV/AUV Navigation

Specifications

ADVANCED NAVIGATION | Digital Fibre Optic Gyroscope (DFOG)

Boreas

Navigation

Roll & Pitch Accuracy | D90

0.005 °

Roll & Pitch Accuracy | D70

0.01 °

Heading Accuracy (dual GNSS, 1m separation) | D90

0.006 °

Heading Accuracy (dual GNSS, 1m separation) | D70

0.01 °

Heading Accuracy (without GNSS) | D90

0.01 ° secant latitude

Heading Accuracy (without GNSS) | D70

0.1 ° secant latitude

Gyrocompass Coarse Alignment (without GNSS)

2 minutes

Accuracy with Odometer (no GNSS) | D90

0.01 % distance travelled

Accuracy with Odometer (no GNSS) | D70

0.05 % distance travelled

Horizontal Position Accuracy (RTK or PPK)

0.01 m

Vertical Position Accuracy (RTK or PPK)

0.015 m

Horizontal Position Accuracy (SBAS)

0.5 m

Vertical Position Accuracy (SBAS)

0.8 m

Velocity Accuracy

0.005 m/s

Heave Accuracy

2 % or 0.02 m (whichever is greater)

Output Rate

1000 Hz

Sensors

Accelerometers

Range

± 15 g

Bias Instability

7 ug

Initial Bias

< 100 ug

Initial Scaling Error

340 ppm

Scale Factor Stability | D90

100 ppm

Scale Factor Stability | D70

150 ppm

Non-linearity

150 ppm

Cross-axis Alignment Error

< 0.001 °

Noise Density | D90

30 ug/√Hz

Noise Density | D70

40 ug/√Hz

Random Walk | D90

17 mm/s/√hr VRW

Random Walk | D70

23 mm/s/√hr VRW

Bandwidth

300 Hz

Gyroscopes

Range

± 490 °/s

Bias Instability (D90)

0.001 °/hr

Bias Instability (D70)

0.01 °/hr

Initial Bias (D90)

< 0.01 °/hr

Initial Bias (D70)

< 0.05 °/hr

Initial Scaling Error (D90)

80 ppm

Initial Scaling Error (D70)

100 ppm

Scale Factor Stability (D90)

10 ppm

Scale Factor Stability (D70)

20 ppm

Non-linearity

10 ppm

Cross-axis Alignment Error

< 0.001 °

Noise Density (D90)

0.06 °/hr/√Hz

Noise Density (D70)

0.3 °/hr/√Hz

Random Walk (D90)

0.001 °/√h ARW

Random Walk (D70)

0.005 °/√h ARW

Bandwidth

400 Hz

Pressure

Range

10 to 130 kPa

Bias Instability

8 Pa

Initial Bias

< 50 Pa

Noise Density

0.4 Pa/√Hz

Bandwidth

50 Hz

GNSS

Model

Advanced Navigation Aries

Supported Navigation Systems

GPS L1, L2 • GLONASS L1, L2 • GALILEO E1, E5b • BeiDou B1, B2

Supported SBAS Systems

WAAS • EGNOS • MSAS • GAGAN • QZSS

Update Rate

Up to 20 Hz

Hot Start First Fix

2 s

Cold Start First Fix

30 s

Horizontal Position Accuracy

1.2 m

Horizontal Position Accuracy (with SBAS)

0.5 m

Horizontal Position Accuracy (with RTK)

0.01 m

Velocity Accuracy

0.05 m/s

Timing Accuracy

20 ns

Acceleration Limit

4 g

Communication

Interface

Ethernet • RS232/RS422 • CAN • 1PPS

Speed

100Mbit • 4800 to 4M baud serial

Protocol

AN Packet Protocol • NMEA • CANopen

Peripheral Interface

2x GPIO • 1x Auxiliary RS232

GPIO Level

5 V (RS232) • 3.3 V

GPIO Functions

1PPS input/output • Odometer input • DVL/USBL input • Air Data input • Zero Velocity input • NMEA input/output • Novatel GNSS input • Trimble GNSS input • AN Packet Protocol • CAN/CANopen

Hardware

Operating Voltage

9 to 36 V

Input Protection

-200 to 200 V

Power Consumption (Typical)

12 W

Hot Start Battery Capacity

> 48 hrs

Hot Start Battery Charge Time

30 mins

Hot Start Battery Endurance

> 10 years

Operating Temperature

-40 °C to 75 °C

Environmental Protection

IP67 • MIL-STD-810H

MTBF

> 70,000 hrs

Shock Limit

50 g 11 ms

Vibration

8g rms (20-2000 Hz random)

Dimensions

160 x 140 x 115.5 mm

Weight

2.5 kg

Documentation

Datasheet D90

15 Jul 2022 - V1.2

Datasheet D70

Jul 2022 - V0.6

Reference Manual D70 & D90 (Online)

Latest

Reference Manual D70 & D90 (PDF)

17 Feb 2023 - V1.5

3D Model

25 May 2021 - V1.0

Software

Boreas Manager

Boreas Manager is used for testing, configuration, firmware management and logging with Boreas. Java 11 is required to run Boreas Manager v7.0 and later. Adoptium JRE 11 is the recommended Java installer. Please see the reference manual for more information.

13 Feb 2023 – V7.0

Boreas Firmware

Firmware for all Boreas D70 & D90 hardware versions. This can be loaded onto Boreas using the web interface or the Boreas Manager software. The change log can be found in the Boreas reference manual.

09 Dec 2022 – V1.4

Boreas SDK

The Boreas SDK provides example source code for interfacing with Boreas through the AN Packet Protocol. The languages provided are C/C++, Java, and .Net C#.

15 Feb 2023 – V7.1
