Dynetics Selects Advanced Navigation for Gremlins X-61 UAV

Case Study

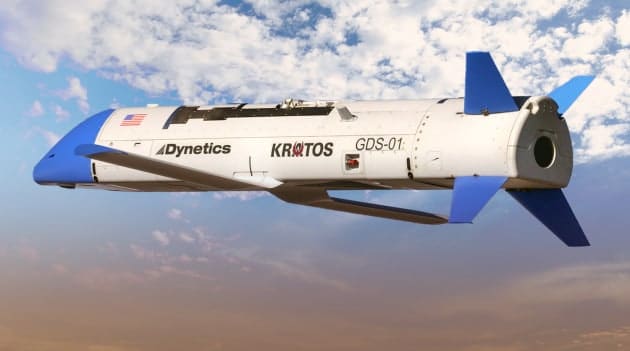

Image of X-61A Gremlins Air Vehicle (GAV)
Share:

Published on:

Key Points

  • Using Advanced Navigation’s industry-leading inertial navigation system (INS), efficient and safe in-flight drone retrieval was made possible.
  • In addition to high performance, the Spatial Dual INS enviable SWaP-C (low size, weight, power consumption, and cost) made it an integral part of the final recovery system design.

Dynetics (Leidos), United States

Dynetics, a subsidiary of Leidos, provides responsive, cost-effective engineering, scientific, and IT solutions to the national security, cyber security, space, and critical infrastructure sectors. Their portfolio features highly specialized technical services and a range of software and hardware products, including components, subsystems, and complex end-to-end systems.

The US defense sector has been seeking a solution that will enable it to launch and retrieve large numbers of small unmanned air systems (UASs) drones from suitable combat aircraft while out of range of adversary defenses. Due to the operations requiring in-flight drone retrieval, the system must be exceptionally coordinated, precise and safe.

The project, named Gremlins program, aims to improve operational flexibility and cost savings by being able to launch and retrieve the UAS drones in-flight. That is, allow the UAS drones to be deployed closer to the mission zone, which reduces flight time and requires less fuel payload. After mission completion, the UAS drones are then retrieved, which reduces the chances of material losses. This system is expected to enable the Gremlin drones to be able to be redeployed within 24 hours of the previous mission.

DARPA Gremlins Program Demonstrates Airborne Recovery

Table of Contents

  1. The Challenge: Accurate and Safe In-Flight Drone Retrieval
  2. The Solution: Dual Antenna MEMS GNSS/INS Provides Excellent Results
  3. The Result: Excellent Performance and Post-Flight Data Analysis

The Challenge: Accurate and Safe In-Flight Drone Retrieval

The challenges involved in coordinating multiple unmanned aircraft and safely tethering and retrieving from a moving aircraft is obvious. Risk to the “mother” aircraft, crew and the UAS drones must be minimized through precision flight control and navigational precision. A very accurate and reliable INS is required for such mission-critical applications.

“When they complete their mission, they return to airborne manned platforms to be recovered to a forward operating base where they can be quickly refurbished and put back into the fight. The potential to overwhelm an adversary continuously with multiple volleys is tremendous.”

Explained Tim Keeter, Deputy Program Manager and Chief Engineer for “Gremlins” at Dynetics.

To support this initiative, the Defense Advanced Research Projects Agency (DARPA) selected Dynetics to demonstrate its capabilities in that space.

A close-up of the Gremlin

The Solution: Dual Antenna MEMS GNSS/INS Provides Excellent Results

Accurate positioning is paramount to enable safe in-flight drone retrieval. Being a defense application, very high reliability was also a deciding factor in Dynetics selecting a suitable navigation solution.

“The unmanned air vehicles utilized in these future operations will carry a variety of different sensors and other payloads, working together to manage and conduct complex, highly-adaptive operations in contested environments.”

Explained Keeter

Therefore, while there was no hard requirement in terms of accuracy, Bill Martin, lead engineer at Dynetics specified that “we were interested in relative position accuracy within 10cm (4″).”

After extensive research and testing, Advanced Navigation Spatial Dual (now superseded by Certus Evo) was ultimately selected for the task.

“Spatial Dual hits the sweet spot between performance, size, power consumption, and cost for our initial R&D flight test instrumentation need on the Gremlins project.”

“Another contributing factor was the chance to achieve high accuracy position data through Kinematica post-processing, allowing accurate measurements of the relative positions between the Gremlins recovery aircraft, UAS, and the deployed recovery system.”

Bill Martin, Lead Engineer, Dynetics

A Gremlin in action

The Result: Excellent Performance and Post-Flight Data Analysis

Ultimately, Dynetics was satisfied with the performance of the Spatial Dual.

“The Spatial Dual units performed nicely and provided very useful data for post-flight analysis.  The Spatial Dual performance during early flight tests, combined with low power consumption and small form factor, convinced us to make the Spatial Dual part of the final recovery system design.”

Said Bill Martin

“Rapid development of innovative and complex systems like Gremlins drives us to identify and use system components with the highest reputation for reliability and performance. We are proud to be working, once again, with Advanced Navigation on another one of our priority demonstration programs.”

Keeter added

Certus Evo

Certus Evo is an AI-based MEMS GNSS-aided INS that provides extremely accurate position, velocity, acceleration and orientation under the most demanding conditions. It offers FOG-like performance combined with the reliability and affordability of MEMS sensors. It features low SWaP-C (Size, Weight, Power, and Cost), internal data logging, and multiple communication interfaces for easy integration. Certus Evo is available in both OEM and rugged packages and comes standard with licence-free 1 cm RTK position accuracy.
