Accelerometer

Share:

What is the definition of accelerometer?

A device used to detect and measure linear acceleration along an axis. MEMS is a common accelerometer technology.

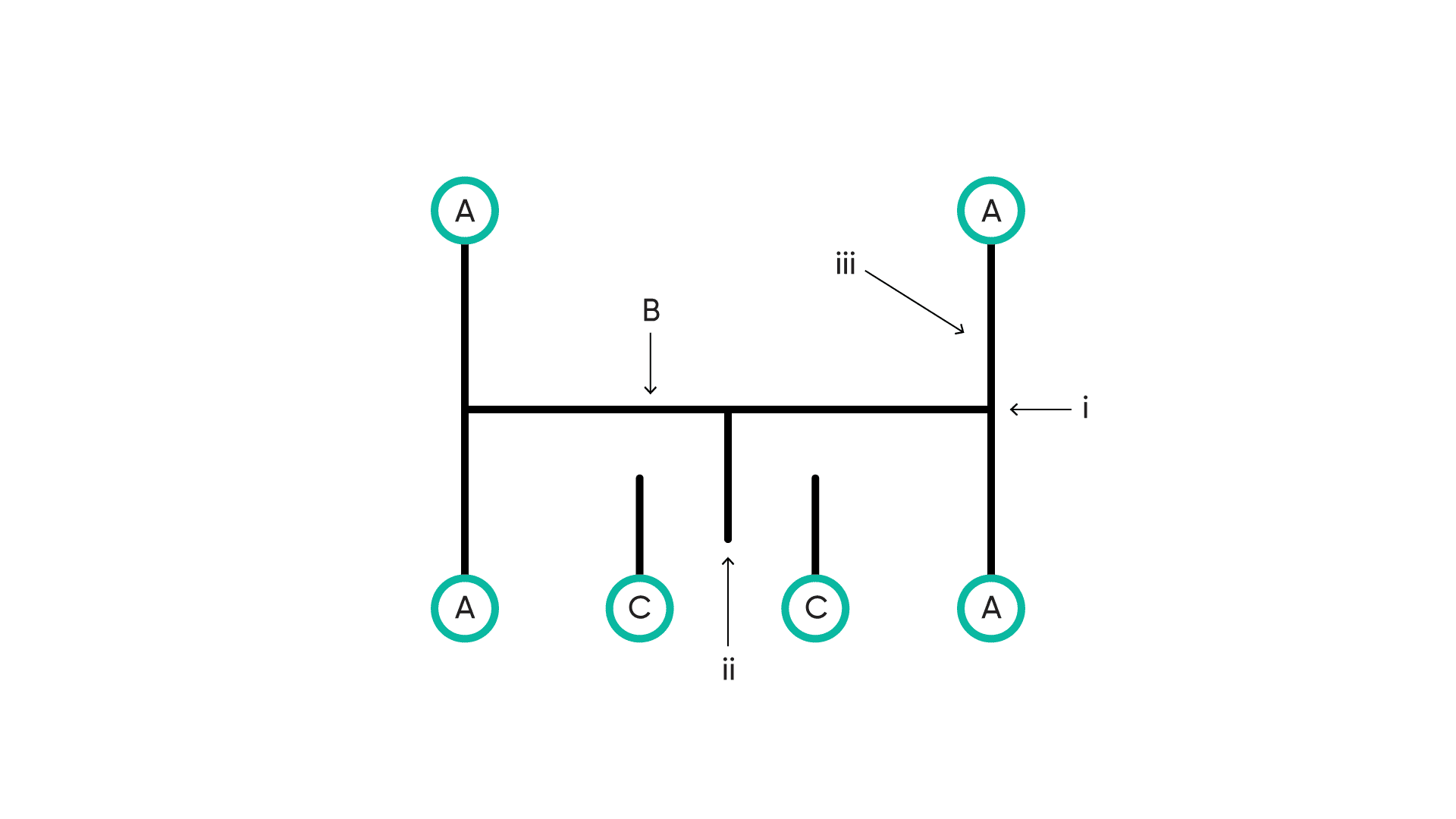

Image depicts the operation of a simple MEMS accelerometer.

  • The anchors (A) hold the proof mass (B) in position.
  • The proof mass consists of a centre section (i), with several protruding fingers (ii).
  • The sections of the proof mass between the centre section and anchors act as the springs (iii).
  • The fixed electrodes (C) make up the differential capacitors, with a protruding finger from the proof mass between the capacitor electrodes.

When the accelerometer is at rest or is traveling at a fixed velocity (zero acceleration), the fingers are in the centre position between the electrodes, as shown.
