Kinematica

Kinematica easily post-processes inertial data and raw GNSS to achieve higher accuracy position, velocity, and orientation.

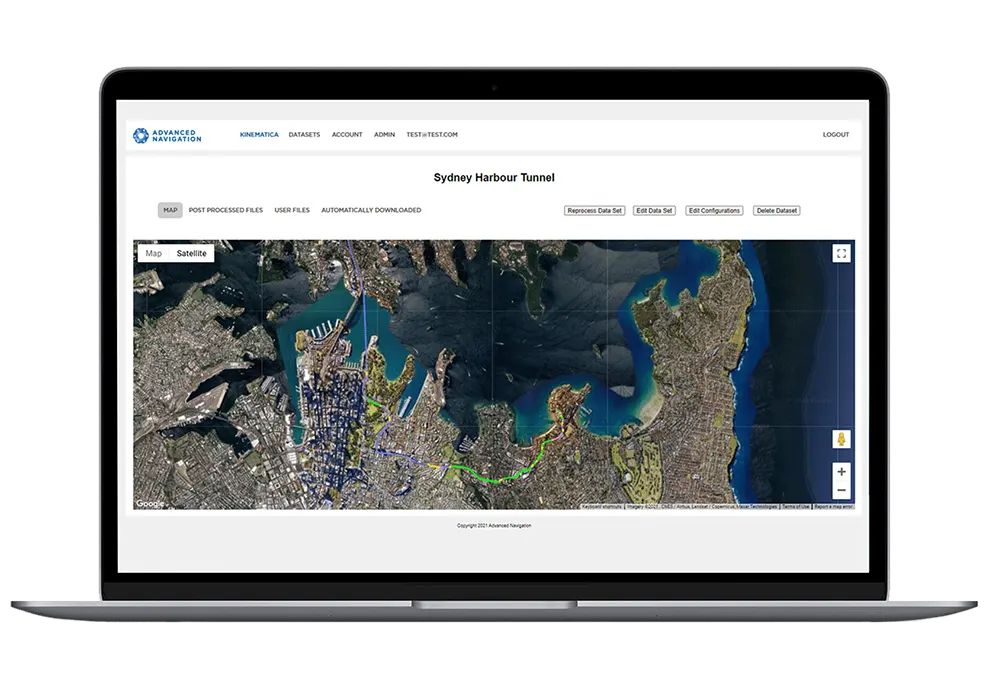

Kinematica is a GNSS/INS post-processed kinematic (PPK) software. It processes raw GNSS and INS data to achieve a higher level of accuracy than real-time INS. Kinematica is compatible with all of Advanced Navigation’s INS solutions.

Maximum INS Accuracy

Kinematica processes data backward and forward in time with advanced algorithms. This allows it to significantly reduce errors and extract the very best performance possible from an inertial navigation system.

Kinematic GNSS Positioning

Kinematica features kinematic GNSS post processing which provides a 200x increase in position accuracy over standard GNSS. Kinematica automatically downloads the closest RINEX base station data and outputs position to an accuracy of 8mm.

Precise Point Positioning (PPP)

The Precise Point Positioning (PPP) algorithm models GNSS errors to provide decimetre-level positioning accuracy without a base station. PPP can be used anywhere in the world, for example at sea or in remote areas, where real-time kinematic (RTK) accuracy in unavailable.

Forward And Reverse Processing

Kinematica's PPK algorithm parses data forwards and backwards to fill satellite outages and ignore errors that would normally affect a real time solution. Data is processed in both diurections multiple times in order to obtain the highest accuracy results.

Dual Antenna Heading

For dual antenna systems, Kinematica supports tightly coupled dual antenna heading processing which significantly increases heading accuracy.

Specifications

Navigation

Spatial Accuracy

Horizontal Position Accuracy (no base station)
0.9 m
Vertical Position Accuracy (no base station)
1.2 m
Horizontal Position Accuracy (with base station)
0.02 m
Vertical Position Accuracy (with base station)
0.03 m
Horizontal Position Accuracy (60s after outage)
0.18 m
Vertical Position Accuracy (60s after outage)
0.22 m
Velocity Accuracy
0.005 m/s
Roll & Pitch Accuracy
0.04 °
Heading Accuracy
0.08 °

Spatial FOG Dual Accuracy

Horizontal Position Accuracy (no base station)
0.7 m
Vertical Position Accuracy (no base station)
1.1 m
Horizontal Position Accuracy (with base station)
0.008 m
Vertical Position Accuracy (with base station)
0.015 m
Horizontal Position Accuracy (60s after outage)
0.10 m
Vertical Position Accuracy (60s after outage)
0.11 m
Velocity Accuracy
0.005 m/s
Roll & Pitch Accuracy
0.005 °
Heading Accuracy
0.007 °

Technical Features

Supported Navigation Systems
GPS L1, L2, L5 • GLONASS G1, G2 • Galileo E1, E5 • BeiDou B1, B2
GNSS/INS Log File Format
ANPP
Base Station Log File Format
RINEX v2.* • RINEX v3.*
Configuration
Fully Automatic
Kinematic Processing
Yes
Dual Antenna Heading Support
Yes
Odometer Aiding Support
Yes
Precise Orbits and Clocks
Yes
Forward and Reverse Processing
Yes
Zero Velocity Updates
Yes

Documentation

Datasheet
21 Sep 2021 - V 2.1
Reference Manual (PDF)
06 Mar 2020 - V 1.6
End User License Agreement (EULA)
13 Jan 2021 - V 2.0
API Reference Manual
17 Aug 2021 - V 1.4

Software

Access Kinematica

Kinematica supports all Advanced Navigation GNSS/INS products and features kinematic post-processing (PPK), forward and reverse processing, and supports automatic loose/tight coupling and dual antenna heading.

Kinematica API

The Kinematica API provides a Java code example and documentation for integrating Kinematica post-processing into customers applications.

06 Feb 2018 – V 1.2
